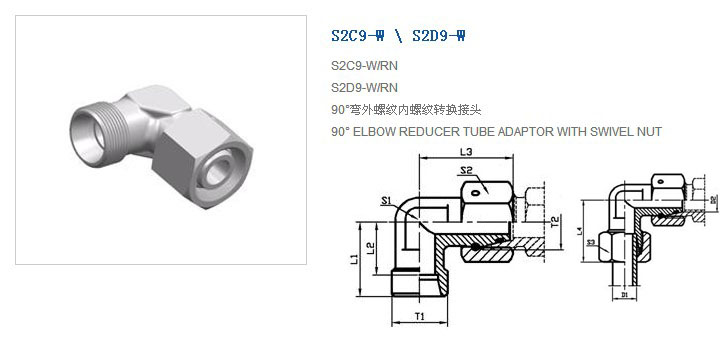

| 系列 | 代號(hào) RAPT NO. | 螺紋 THREAD | 管子外徑 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 | 工作壓力 (Bar) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | D1、D2 | L1 | L2 | L3 | L4 | S1 | S2、S3 | ||||
| L | S2C9-12W | M12X1.5 | M12X1.5 | 06 | 19 | 12 | 26 | 27 | 12 | 14 | 34 | 500 |
| S2C9-14W | M14X1.5 | M14X1.5 | 08 | 21 | 14 | 27.5 | 29 | 12 | 17 | 43 | 500 | |
| S2C9-16W | M16X1.5 | M16X1.5 | 10 | 22 | 15 | 29 | 30 | 14 | 19 | 58 | 500 | |
| S2C9-18W | M18X1.5 | M18X1.5 | 12 | 24 | 17 | 29.5 | 32 | 17 | 22 | 81 | 400 | |
| S2C9-22W | M22X1.5 | M22X1.5 | 15 | 28 | 21 | 32.5 | 36 | 19 | 27 | 128 | 400 | |
| S2C9-26W | M26X1.5 | M26X1.5 | 18 | 31 | 23.5 | 35.5 | 40 | 24 | 32 | 197 | 400 | |
| S2C9-30W | M30X2 | M30X2 | 22 | 35 | 27.5 | 38.5 | 44 | 27 | 36 | 258 | 250 | |
| S2C9-36W | M36X2 | M36X2 | 28 | 38 | 30.5 | 41.5 | 47 | 36 | 41 | 370 | 250 | |
| S2C9-45W | M45X2 | M45X2 | 35 | 45 | 34.5 | 51 | 56 | 41 | 50 | 593 | 250 | |
| S2C9-52W | M52X2 | M52X2 | 42 | 51 | 40 | 56 | 63 | 50 | 60 | 993 | 250 | |
| S | S2D9-14W | M14X1.5 | M14X1.5 | 06 | 23 | 16 | 27 | 31 | 12 | 17 | 48 | 800 |
| S2D9-16W | M16X1.5 | M16X1.5 | 08 | 24 | 17 | 27.5 | 32 | 14 | 19 | 65 | 800 | |
| S2D9-18W | M18X1.5 | M18X1.5 | 10 | 25 | 17.5 | 30 | 34 | 17 | 22 | 92 | 800 | |
| S2D9-20W | M20X1.5 | M20X1.5 | 12 | 29 | 21.5 | 31 | 38 | 17 | 24 | 107 | 630 | |
| S2D9-22W | M22X1.5 | M22X1.5 | 14 | 30 | 22 | 35 | 40 | 19 | 27 | 146 | 630 | |
| S2D9-24W | M24X1.5 | M24X1.5 | 16 | 33 | 24.5 | 36.5 | 43 | 24 | 30 | 212 | 630 | |
| S2D9-30W | M30X2 | M30X2 | 20 | 37 | 26.5 | 44.5 | 48 | 27 | 36 | 309 | 420 | |
| S2D9-36W | M36X2 | M36X2 | 25 | 42 | 30 | 50 | 54 | 36 | 46 | 547 | 420 | |
| S2D9-42W | M42X2 | M42X2 | 30 | 49 | 35.5 | 55 | 62 | 41 | 50 | 744 | 420 | |
| S2D9-52W | M52X2 | M52X2 | 38 | 57 | 41 | 63 | 72 | 50 | 60 | 1222 | 420 | |
