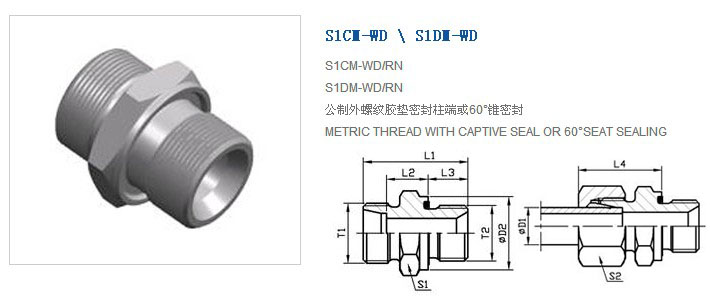

| 系列 | 代號 RAPT NO. | 螺紋 THREAD | 管子外徑 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 | 工作壓力 (bar) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | D1 | D2 | L1 | L2 | L3 | L4 | S1 | S2 | ||||
| L | S1CM-12-10WD | M12X1.5 | M10X1 | 06 | 14 | 23.5 | 8.5 | 8 | 23 | 14 | 14 | 13 | 500 |
| S1CM-14-12WD | M14X1.5 | M12X1.5 | 08 | 17 | 29 | 10 | 12 | 25 | 17 | 17 | 22 | 500 | |
| S1CM-16-12WD | M16X1.5 | M12X1.5 | 10 | 17 | 30 | 11 | 12 | 26 | 17 | 19 | 23 | 500 | |
| S1CM-16-14WD | M16X1.5 | M14X1.5 | 10 | 19 | 30 | 11 | 12 | 26 | 19 | 19 | 29 | 500 | |
| S1CM-16WD | M16X1.5 | M16X1.5 | 10 | 22 | 31.5 | 12.5 | 12 | 24 | 22 | 19 | 40 | 420 | |
| S1CM-16-18WD | M16X1.5 | M18X1.5 | 10 | 24 | 31.5 | 12.5 | 12 | 27 | 24 | 19 | 50 | 400 | |
| S1CM-16-22WD | M16X1.5 | M22X1.5 | 10 | 27 | 35 | 14 | 14 | 29 | 27 | 19 | 80 | 400 | |
| S1CM-18-14WD | M18X1.5 | M14X1.5 | 12 | 19 | 30 | 11 | 12 | 26 | 19 | 22 | 30 | 400 | |
| S1CM-18-16WD | M18X1.5 | M16X1.5 | 12 | 22 | 31.5 | 12.5 | 12 | 27 | 22 | 22 | 40 | 400 | |
| S1CM-18WD | M18X1.5 | M18X1.5 | 12 | 24 | 31.5 | 12.5 | 12 | 27 | 24 | 22 | 47 | 400 | |
| S1CM-18-22WD | M18X1.5 | M22X1.5 | 12 | 27 | 35 | 14 | 14 | 29 | 27 | 22 | 75 | 400 | |
| S1CM-22-16WD | M22X1.5 | M16X1.5 | 15 | 22 | 32 | 13 | 12 | 28 | 24 | 27 | 64 | 400 | |
| S1CM-22-18WD | M22X1.5 | M18X1.5 | 15 | 24 | 32.5 | 13.5 | 12 | 29 | 24 | 27 | 51 | 400 | |
| S1CM-22WD | M22X1.5 | M22X1.5 | 15 | 27 | 36 | 15 | 14 | 30 | 27 | 27 | 77 | 400 | |
| S1CM-26-18WD | M26X1.5 | M18X1.5 | 18 | 24 | 33.5 | 14 | 12 | 30 | 27 | 32 | 68 | 400 | |
| S1CM-26-22WD | M26X1.5 | M22X1.5 | 18 | 27 | 36 | 14.5 | 14 | 31 | 27 | 32 | 74 | 400 | |
| S1CM-30-22WD | M30X2 | M22X1.5 | 22 | 27 | 38 | 16.5 | 14 | 33 | 32 | 36 | 97 | 250 | |
| S1CM-30-26WD | M30X2 | M26X1.5 | 22 | 32 | 40 | 16.5 | 16 | 33 | 32 | 36 | 103 | 250 | |
| S1CM-30-27WD | M30X2 | M27X2 | 22 | 32 | 40 | 16.5 | 16 | 33 | 32 | 36 | 106 | 250 | |
| S1CM-36-33WD | M36X2 | M33X2 | 28 | 40 | 43 | 17.5 | 18 | 34 | 41 | 41 | 168 | 250 | |
| S1CM-45-42WD | M45X2 | M42X2 | 35 | 50 | 48 | 17.5 | 20 | 39 | 50 | 50 | 281 | 250 | |
| S1CM-52-48WD | M52X2 | M48X2 | 42 | 55 | 52 | 19 | 22 | 42 | 55 | 60 | 356 | 250 | |
| S | S1DM-14-12WD | M14X1.5 | M12X1.5 | 06 | 17 | 32 | 13 | 12 | 28 | 17 | 17 | 30 | 800 |
| S1DM-16-14WD | M16X1.5 | M14X1.5 | 08 | 19 | 34 | 15 | 12 | 30 | 19 | 19 | 42 | 800 | |
| S1DM-18-16WD | M18X1.5 | M16X1.5 | 10 | 22 | 34.5 | 15 | 12 | 31 | 22 | 22 | 54 | 800 | |
| S1DM-20-14WD | M20X1.5 | M14X1.5 | 12 | 19 | 36 | 16.5 | 12 | 33 | 22 | 24 | 60 | 630 | |
| S1DM-20-18WD | M20X1.5 | M18X1.5 | 12 | 24 | 36.5 | 17 | 12 | 33 | 24 | 24 | 71 | 630 | |
| S1DM-20-22WD | M20X1.5 | M22X1.5 | 12 | 27 | 39 | 17.5 | 14 | 34 | 27 | 24 | 102 | 630 | |
| S1DM-22-20WD | M22X1.5 | M20X1.5 | 14 | 26 | 41 | 19 | 14 | 37 | 27 | 27 | 98 | 630 | |
| S1DM-24-18WD | M24X1.5 | M18X1.5 | 16 | 24 | 38.5 | 18 | 12 | 36 | 27 | 30 | 88 | 630 | |
| S1DM-24-22WD | M24X1.5 | M22X1.5 | 16 | 27 | 41 | 18.5 | 14 | 37 | 27 | 30 | 95 | 800 | |
| S1DM-30-27WD | M30X2 | M27X2 | 20 | 32 | 47 | 20.5 | 16 | 42 | 32 | 36 | 150 | 420 | |
| S1DM-36-33WD | M36X2 | M33X2 | 25 | 40 | 53 | 23 | 18 | 47 | 41 | 46 | 264 | 420 | |
| S1DM-42WD | M42X2 | M42X2 | 30 | 50 | 57 | 23.5 | 20 | 50 | 50 | 50 | 422 | 420 | |
| S1DM-52-48WD | M52X2 | M48X2 | 38 | 55 | 64 | 26 | 22 | 57 | 55 | 60 | 569 | 420 | |
