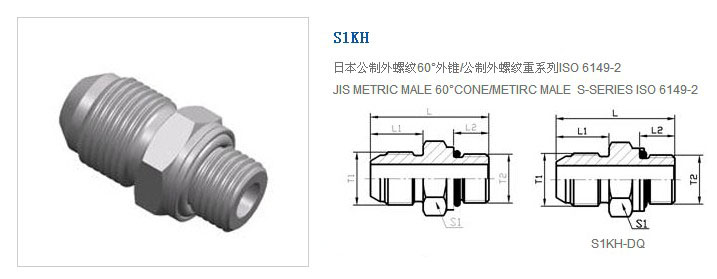

| 代號RAPT NO. | 螺紋 ETHREAD | 尺寸 DIMENSIONS | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | L | S1 | ||
| S1KH-14-12 | M14X1.5 | M12X1.5 | 17 | 11 | 39 | 17 | 34.5 |
| S1KH-14 | M14X1.5 | M14X1.5 | 17 | 11 | 39 | 19 | |
| S1KH-16-14 | M16X1.5 | M14X1.5 | 18 | 11 | 40 | 19 | |
| S1KH-18-14 | M18X1.5 | M14X1.5 | 18 | 11 | 40 | 19 | |
| S1KH-18-16 | M18X1.5 | M16X1.5 | 18 | 12.5 | 42 | 22 | |
| S1KH-18-20 | M18X1.5 | M20X1.5 | 18 | 14 | 45 | 27 | |
| S1KH-20-18 | M20X1.5 | M18X1.5 | 20 | 14 | 47 | 24 | |
| S1KH-22-20 | M22X1.5 | M20X1.5 | 20 | 14 | 47 | 27 | |
| S1KH-24-20 | M24X1.5 | M20X1.5 | 21.5 | 14 | 48.5 | 27 | 27.5 |
| S1KH-24-22 | M24X1.5 | M22X1.5 | 21.5 | 15 | 50 | 27 | |
| S1KH-30-27 | M30X1.5 | M27X2 | 26 | 18.5 | 60.5 | 32 | 20.5 |
| S1KH-33 | M33X1.5 | M33X2 | 30 | 18.5 | 65 | 41 | |
| S1KH-36-33 | M36X1.5 | M33X2 | 33 | 18.5 | 68 | 41 | 17 |
