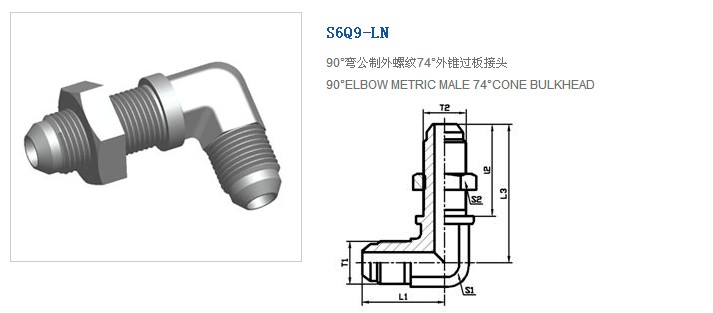

| 代號 RAPT NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 工作壓力MPa | |||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | L3 | S1 | S2 | ||
| S6Q9-12LN | M12X1.5 | M12X1.5 | 24 | 38 | 52 | 11 | 17 | 35 |
| S6Q9-14LN | M14X1.5 | M14X1.5 | 28.5 | 40 | 56 | 14 | 19 | |
| S6Q9-16LN | M16X1.5 | M16X1.5 | 30.5 | 41 | 58 | 16 | 22 | 25 |
| S6Q9-18LN | M18X1.5 | M18X1.5 | 31.5 | 43 | 62 | 19 | 24 | |
| S6Q9-22LN | M22X1.5 | M22X1.5 | 34 | 44 | 64 | 22 | 27 | 20 |
| S6Q9-27LN | M27X1.5 | M27X1.5 | 37.5 | 48 | 72 | 27 | 32 | |
| S6Q9-30LN | M30X1.5 | M30X1.5 | 42.8 | 53 | 78 | 30 | 36 | |
| S6Q9-33LN | M33X2 | M33X2 | 45.5 | 55 | 82 | 33 | 41 | 16 |
| S6Q9-36LN | M36X2 | M36X2 | 47 | 56 | 86 | 36 | 41 | |
| S6Q9-39LN | M39X2 | M39X2 | 50 | 58 | 88 | 41 | 46 | |
| S6Q9-42LN | M42X2 | M42X2 | 52.5 | 59 | 95 | 41 | 50 | 12.5 |
| S6Q9-45LN | M45X2 | M45X2 | 54 | 60 | 96 | 46 | 55 | 10 |
