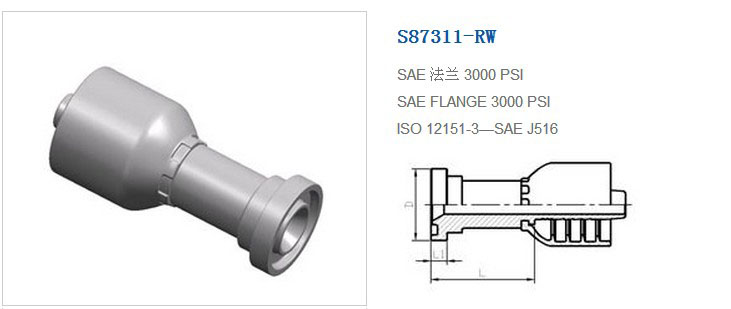

| 代 號 | 法蘭型號 | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | 公稱內徑 DN | 標號 DASH | L | D | L1 |
| S87311-08-08RW | 1/2＂ | 13 | 08 | 46 | 30.2 | 6.73 |
| S87311-12-08RW | 3/4＂ | 13 | 08 | 47 | 38.1 | 6.73 |
| S87311-12-10RW | 3/4＂ | 16 | 10 | 48 | 38.1 | 6.73 |
| S87311-12-12RW | 3/4＂ | 19 | 12 | 48 | 38.1 | 6.73 |
| S87311-12-16RW | 3/4＂ | 25 | 16 | 49 | 38.1 | 6.73 |
| S87311-16-12RW | 1＂ | 19 | 12 | 51 | 44.4 | 8 |
| S87311-16-16RW | 1＂ | 25 | 16 | 52 | 44.4 | 8 |
| S87311-16-20RW | 1＂ | 32 | 20 | 53 | 44.4 | 8 |
| S87311-20-16RW | 1.1/4＂ | 25 | 16 | 57 | 50.8 | 8 |
| S87311-20-20RW | 1.1/4＂ | 32 | 20 | 58 | 50.8 | 8 |
| S87311-24-20RW | 1.1/2＂ | 32 | 20 | 68 | 60.3 | 8 |
| S87311-24-24RW | 1.1/2＂ | 38 | 24 | 68 | 60.3 | 8 |
| S87311-32-24RW | 2＂ | 38 | 24 | 66 | 71.4 | 9.53 |
| S87311-32-32RW | 2＂ | 51 | 32 | 70 | 71.4 | 9.53 |
