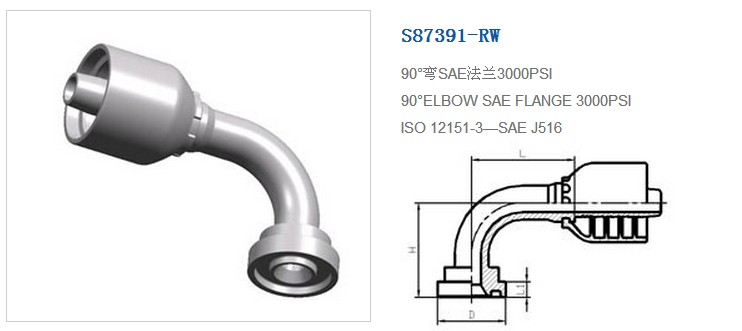

| 代 號 | 法蘭型號 | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | 公稱內徑 DN | 標號 DASH | L | H | D | L1 |
| S87391-08-08RW | 1/2＂ | 13 | 08 | 44 | 47 | 30.2 | 6.73 |
| S87391-12-08RW | 3/4＂ | 13 | 08 | 44 | 48 | 38.1 | 6.73 |
| S87391-12-10RW | 3/4＂ | 16 | 10 | 55 | 53 | 38.1 | 6.73 |
| S87391-12-12RW | 3/4＂ | 19 | 12 | 64 | 59 | 38.1 | 6.73 |
| S87391-12-16RW | 3/4＂ | 25 | 16 | 74 | 66 | 38.1 | 6.73 |
| S87391-16-12RW | 1＂ | 19 | 12 | 64 | 59 | 44.4 | 8 |
| S87391-16-16RW | 1＂ | 25 | 16 | 74 | 66 | 44.4 | 8 |
| S87391-16-20RW | 1＂ | 32 | 20 | 91.5 | 78.5 | 44.4 | 8 |
| S87391-20-16RW | 1.1/4＂ | 25 | 16 | 74 | 66 | 50.8 | 8 |
| S87391-20-20RW | 1.1/4＂ | 32 | 20 | 91.5 | 78.5 | 50.8 | 8 |
| S87391-24-20RW | 1.1/2＂ | 32 | 20 | 91.5 | 78.5 | 60.3 | 8 |
| S87391-24-24RW | 1.1/2＂ | 38 | 24 | 109 | 94 | 60.3 | 8 |
| S87391-32-24RW | 2＂ | 38 | 24 | 109 | 94 | 71.4 | 9.53 |
| S87391-32-32RW | 2＂ | 51 | 32 | 131 | 115 | 71.4 | 9.53 |
