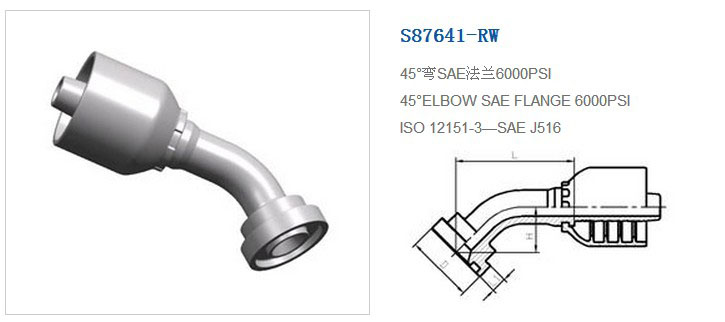

| 代 號 | 法蘭型號 | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | 公稱內(nèi)徑 DN | 標號 DASH | L | H | D | L1 |
| S87641-08-08RW | 1/2＂ | 13 | 08 | 58 | 25.1 | 31.7 | 7.75 |
| S87641-12-10RW | 3/4＂ | 16 | 10 | 67 | 27.8 | 41.3 | 8.76 |
| S87641-12-12RW | 3/4＂ | 19 | 12 | 73.5 | 30.9 | 41.3 | 8.76 |
| S87641-16-12RW | 1＂ | 19 | 12 | 76 | 33 | 47.6 | 9.53 |
| S87641-16-16RW | 1＂ | 25 | 16 | 87 | 34.4 | 47.6 | 9.53 |
| S87641-16-20RW | 1＂ | 32 | 20 | 99.5 | 39 | 47.6 | 9.53 |
| S87641-20-16RW | 1.1/4＂ | 25 | 16 | 90 | 37.4 | 54 | 10.29 |
| S87641-20-20RW | 1.1/4＂ | 32 | 20 | 103 | 41.5 | 54 | 10.29 |
| S87641-24-24RW | 1.1/2＂ | 38 | 24 | 120 | 50.3 | 63.5 | 12.57 |
| S87641-32-24RW | 2＂ | 38 | 24 | 125 | 56 | 79.4 | 12.57 |
| S87641-32-32RW | 2＂ | 51 | 32 | 143 | 62 | 79.4 | 12.57 |
