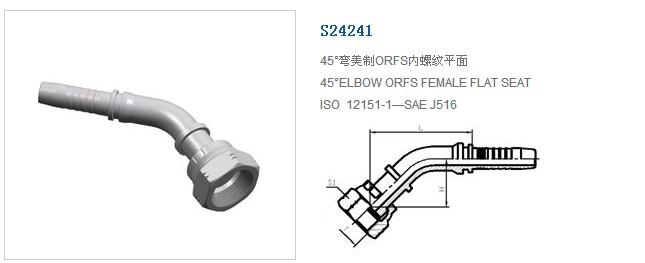

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑DN | 標號 DASH | L | H | S1 |
| S24241-04-04 | 9/16＂X18 | 6 | 04 | 45 | 21 | 19 |
| S24241-06-04T | 11/16＂X16 | 6 | 04 | 38 | 14.7 | 22 |
| S24241-06-05T | 11/16＂X16 | 8 | 05 | 39.5 | 15.7 | 22 |
| S24241-06-06 | 11/16＂X16 | 10 | 06 | 52.8 | 27 | 22 |
| S24241-08-06T | 13/16＂X16 | 10 | 06 | 44.7 | 18.7 | 24 |
| S24241-08-08 | 13/16＂X16 | 13 | 08 | 63.3 | 30.4 | 27 |
| S24241-08-10 | 13/16＂X16 | 16 | 10 | 71 | 31.5 | 27 |
| S24241-10-08T | 1＂X14 | 12 | 08 | 57.5 | 24 | 30 |
| S24241-10-10 | 1＂X14 | 16 | 10 | 75 | 35 | 30 |
| S24241-12-08T | 1.3/16＂X12 | 13 | 08 | 54.9 | 23.5 | 36 |
| S24241-12-10T | 1.3/16＂X12 | 16 | 10 | 64.5 | 25 | 36 |
| S24241-12-12 | 1.3/16＂X12 | 19 | 12 | 82 | 39.4 | 36 |
| S24241-16-12T | 1.7/16＂X12 | 19 | 12 | 74 | 29 | 41 |
| S24241-16-16T | 1.7/16＂X12 | 25 | 16 | 77.3 | 27.9 | 41 |
| S24241-20-16T | 1.11/16＂X12 | 25 | 16 | 79.5 | 30 | 50 |
| S24241-20-20 | 1.11/16＂X12 | 32 | 20 | 107 | 46.5 | 50 |
| S24241-24-20T | 2＂X12 | 32 | 20 | 94.5 | 33.8 | 60 |
| S24241-24-24T | 2＂X12 | 38 | 24 | 109 | 39 | 60 |
