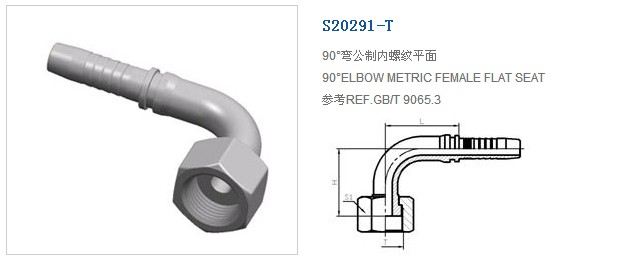

| 代號(hào) | 螺紋 T | 軟管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內(nèi)徑 DN | 標(biāo)號(hào) DASH | L | H | S1 |
| S20291-14-04T | M14X1.5 | 6 | 04 | 32 | 28.5 | 17 |
| S20291-14-05 | M14X1.5 | 8 | 05 | 33 | 33.5 | 19 |
| S20291-16-05T | M16X1.5 | 8 | 05 | 32.5 | 30.5 | 19 |
| S20291-16-06 | M16X1.5 | 10 | 06 | 36.5 | 39.5 | 22 |
| S20291-18-06T | M18X1.5 | 10 | 06 | 36.5 | 36 | 22 |
| S20291-22-08T | M22X1.5 | 13 | 08 | 44.5 | 43.5 | 27 |
| S20291-27-10T | M27X1.5 | 16 | 10 | 55 | 52 | 32 |
| S20291-30-12T | M30X1.5 | 19 | 12 | 62 | 55 | 36 |
| S20291-39-16T | M39X2 | 25 | 16 | 74 | 68.5 | 46 |
| S20291-45-20T | M45X2 | 32 | 20 | 91.5 | 78.5 | 55 |
| S20291-52-24T | M52X2 | 38 | 24 | 109 | 92 | 60 |
| S20291-64-32T | M64X2 | 51 | 32 | 129 | 113.3 | 75 |
