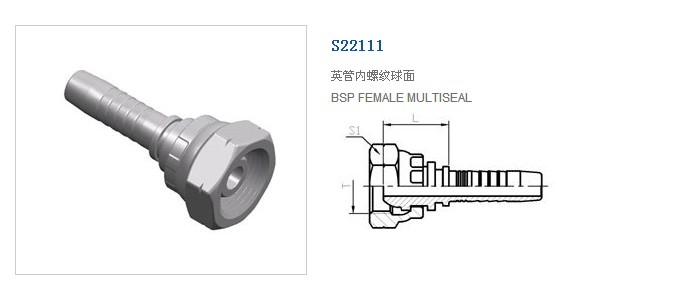

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內徑 DN | 標號 DASH | L | S1 |
| S22111-02-04 | G1/8＂X28 | 6 | 04 | 17.5 | 14 |
| S22111-04-04 | G1/4＂X19 | 6 | 04 | 19.5 | 19 |
| S22111-06-05T | G3/8＂X19 | 8 | 05 | 20 | 22 |
| S22111-06-06 | G3/8＂X19 | 10 | 06 | 20.5 | 22 |
| S22111-06-08 | G3/8＂X19 | 13 | 08 | 21.5 | 22 |
| S22111-08-06T | G1/2＂X14 | 10 | 06 | 22.5 | 27 |
| S22111-08-08 | G1/2＂X14 | 13 | 08 | 23.5 | 27 |
| S22111-08-10 | G1/2＂X14 | 16 | 10 | 24.5 | 27 |
| S22111-10-08T | G5/8＂X14 | 13 | 08 | 24 | 30 |
| S22111-10-10 | G5/8＂X14 | 16 | 10 | 25 | 30 |
| S22111-10-12 | G5/8＂X14 | 19 | 12 | 25 | 30 |
| S22111-12-10T | G3/4＂X14 | 16 | 10 | 25.5 | 32 |
| S22111-12-12 | G3/4＂X14 | 19 | 12 | 26 | 32 |
| S22111-16-12T | G1＂X11 | 19 | 12 | 26.5 | 41 |
| S22111-16-16 | G1＂X11 | 25 | 16 | 28 | 41 |
| S22111-20-16T | G1.1/4＂X11 | 25 | 16 | 28 | 50 |
| S22111-20-20 | G1.1/4＂X11 | 32 | 20 | 31.5 | 50 |
| S22111-24-20T | G1.1/2＂X11 | 32 | 20 | 32 | 55 |
| S22111-24-24 | G1.1/2＂X11 | 38 | 24 | 33 | 55 |
| S22111-32-24T | G2＂X11 | 38 | 24 | 34 | 70 |
| S22111-32-32 | G2＂X11 | 51 | 32 | 35 | 70 |
