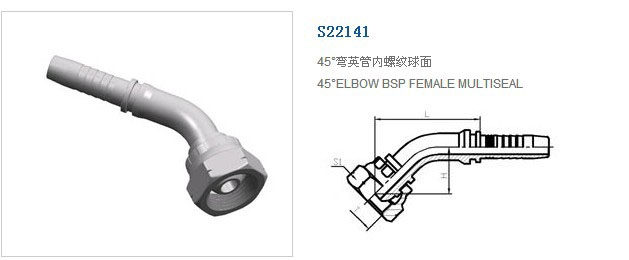

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內(nèi)徑 DN | 標(biāo)號 DASH | L | H | S1 |
| S22191-02-04 | G1/8＂X28 | 6 | 04 | 27.5 | 28.5 | 14 |
| S22191-04-04 | G1/4＂X19 | 6 | 04 | 30.5 | 37 | 19 |
| S22191-06-05T | G3/8＂X19 | 8 | 05 | 33 | 41.5 | 22 |
| S22191-06-06 | G3/8＂X19 | 10 | 06 | 36.5 | 43.5 | 22 |
| S22191-06-08 | G3/8＂X19 | 13 | 08 | 43.5 | 49 | 22 |
| S22191-08-06T | G1/2＂X14 | 10 | 06 | 36.5 | 46 | 27 |
| S22191-08-08 | G1/2＂X14 | 13 | 08 | 44.5 | 51.5 | 27 |
| S22191-08-10 | G1/2＂X14 | 16 | 10 | 55 | 56 | 27 |
| S22191-10-08T | G5/8＂X14 | 13 | 08 | 43.5 | 52 | 30 |
| S22191-10-10 | G5/8＂X14 | 16 | 10 | 55 | 56.5 | 30 |
| S22191-10-12 | G5/8＂X14 | 19 | 12 | 64 | 64.5 | 30 |
| S22191-12-10T | G3/4＂X14 | 16 | 10 | 55 | 58.5 | 32 |
| S22191-12-12 | G3/4＂X14 | 19 | 12 | 62 | 66.5 | 32 |
| S22191-16-12T | G1＂X11 | 19 | 12 | 62 | 67.5 | 41 |
| S22191-16-16 | G1＂X11 | 25 | 16 | 74 | 74.5 | 41 |
| S22191-20-16T | G1.1/4＂X11 | 25 | 16 | 74 | 76.5 | 50 |
| S22191-20-20 | G1.1/4＂X11 | 32 | 20 | 91.5 | 89 | 50 |
| S22191-24-20T | G1.1/2＂X11 | 32 | 20 | 91.5 | 92.5 | 55 |
| S22191-24-24 | G1.1/2＂X11 | 38 | 24 | 109 | 106 | 55 |
| S22191-32-24T | G2＂X11 | 38 | 24 | 109 | 105 | 70 |
| S22191-32-32 | G2＂X11 | 51 | 32 | 129 | 125.5 | 70 |
