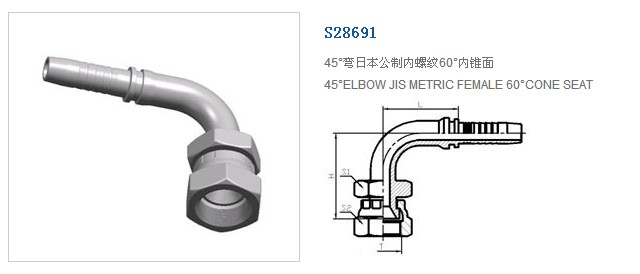

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內(nèi)徑 DN | 標號 DASH | L | H | S1 | S2 |
| S28691-12-04 | M12X1.5 | 6 | 04 | 32 | 29.5 | 17 | 17 |
| S28691-14-04 | M14X1.5 | 6 | 04 | 32 | 30 | 19 | 19 |
| S28691-14-06 | M14X1.5 | 10 | 06 | 36.5 | 38.5 | 19 | 19 |
| S28691-16-04 | M16X1.5 | 6 | 04 | 32 | 28 | 22 | 22 |
| S28691-16-05 | M16X1.5 | 8 | 05 | 33 | 37.5 | 22 | 22 |
| S28691-16-06 | M16X1.5 | 10 | 06 | 36.5 | 39.5 | 22 | 22 |
| S28691-18-06 | M18X1.5 | 10 | 06 | 36.5 | 41 | 24 | 24 |
| S28691-18-08 | M18X1.5 | 13 | 08 | 43.5 | 46.5 | 24 | 24 |
| S28691-22-08 | M22X1.5 | 13 | 08 | 43.5 | 47 | 27 | 27 |
| S28691-24-08 | M24X1.5 | 13 | 08 | 43.5 | 48.5 | 32 | 32 |
| S28691-24-10 | M24X1.5 | 16 | 10 | 55 | 53 | 32 | 32 |
| S28691-30-12 | M30X1.5 | 19 | 12 | 64 | 62 | 36 | 36 |
| S28691-33-12 | M33X1.5 | 19 | 12 | 64 | 70 | 41 | 41 |
| S28691-33-16 | M33X1.5 | 25 | 16 | 74 | 77 | 41 | 41 |
| S28691-36-20 | M36X1.5 | 32 | 20 | 91.5 | 92 | 46 | 46 |
