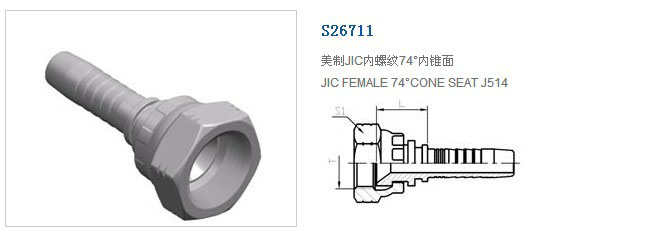

| 代 號 | 螺紋 T | 軟 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公稱內(nèi)徑 DN | 標(biāo)號 DASH | L | S1 |
| S26711-04-04 | 7/16＂X20 | 6 | 04 | 15 | 14 |
| S26711-05-04 | 1/2＂X20 | 6 | 04 | 15.5 | 17 |
| S26711-05-05 | 1/2＂X20 | 8 | 05 | 15.5 | 17 |
| S26711-06-04T | 9/16＂X18 | 6 | 04 | 15.5 | 19 |
| S26711-06-05 | 9/16＂X18 | 8 | 05 | 15.5 | 19 |
| S26711-06-06 | 9/16＂X18 | 10 | 06 | 15.5 | 19 |
| S26711-07-06 | 5/8＂X18 | 10 | 06 | 16.5 | 22 |
| S26711-08-06T | 3/4＂X16 | 10 | 06 | 18 | 24 |
| S26711-08-08 | 3/4＂X16 | 13 | 08 | 18 | 24 |
| S26711-08-10 | 3/4＂X16 | 16 | 10 | 19 | 24 |
| S26711-10-08T | 7/8＂X14 | 13 | 08 | 19 | 27 |
| S26711-10-10 | 7/8＂X14 | 16 | 10 | 20 | 27 |
| S26711-10-12 | 7/8＂X14 | 19 | 12 | 20 | 27 |
| S26711-12-08T | 1.1/16＂X12 | 12 | 08 | 20 | 32 |
| S26711-12-10T | 1.1/16＂X12 | 16 | 10 | 21.5 | 32 |
| S26711-12-12 | 1.1/16＂X12 | 19 | 12 | 21.5 | 32 |
| S26711-14-12T | 1.3/16＂X12 | 19 | 12 | 21.5 | 36 |
| S26711-16-12T | 1.5/16＂X12 | 19 | 12 | 22 | 41 |
| S26711-16-16 | 1.5/16＂X12 | 25 | 16 | 23 | 41 |
| S26711-20-16T | 1.5/8＂X12 | 25 | 16 | 25 | 50 |
| S26711-20-20 | 1.5/8＂X12 | 32 | 20 | 26 | 50 |
| S26711-24-20T | 1.7/8＂X12 | 32 | 20 | 26 | 55 |
| S26711-24-24 | 1.7/8＂X12 | 38 | 24 | 26.5 | 55 |
| S26711-32-24T | 2.1/2＂X12 | 38 | 24 | 26.5 | 75 |
| S26711-32-32 | 2.1/2＂X12 | 51 | 32 | 27 | 75 |
